360° Rotating Sewing Head
The needle-post assembly rotates through 360°, making it easier to insert, turn and remove three-dimensional workpieces.

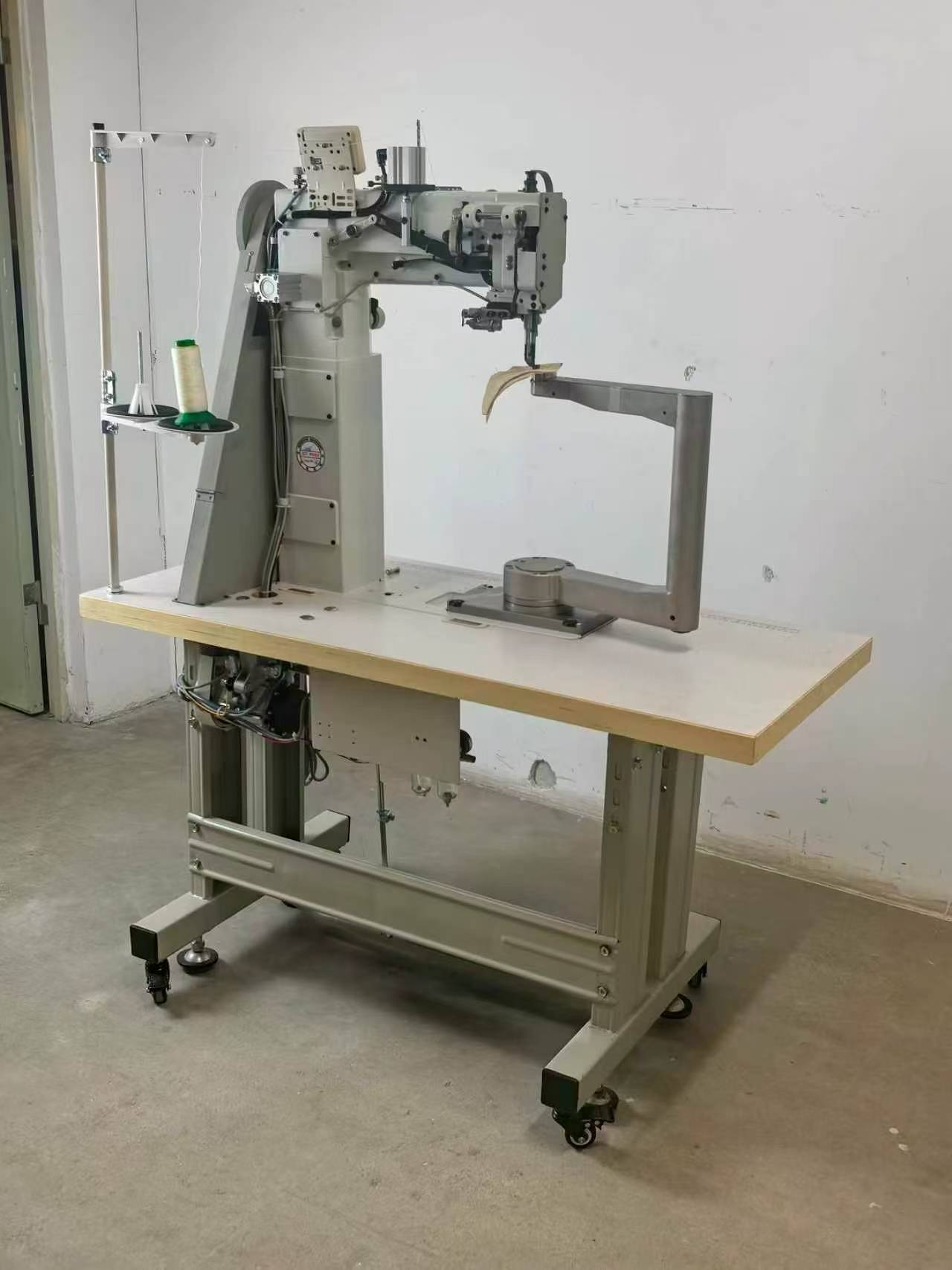

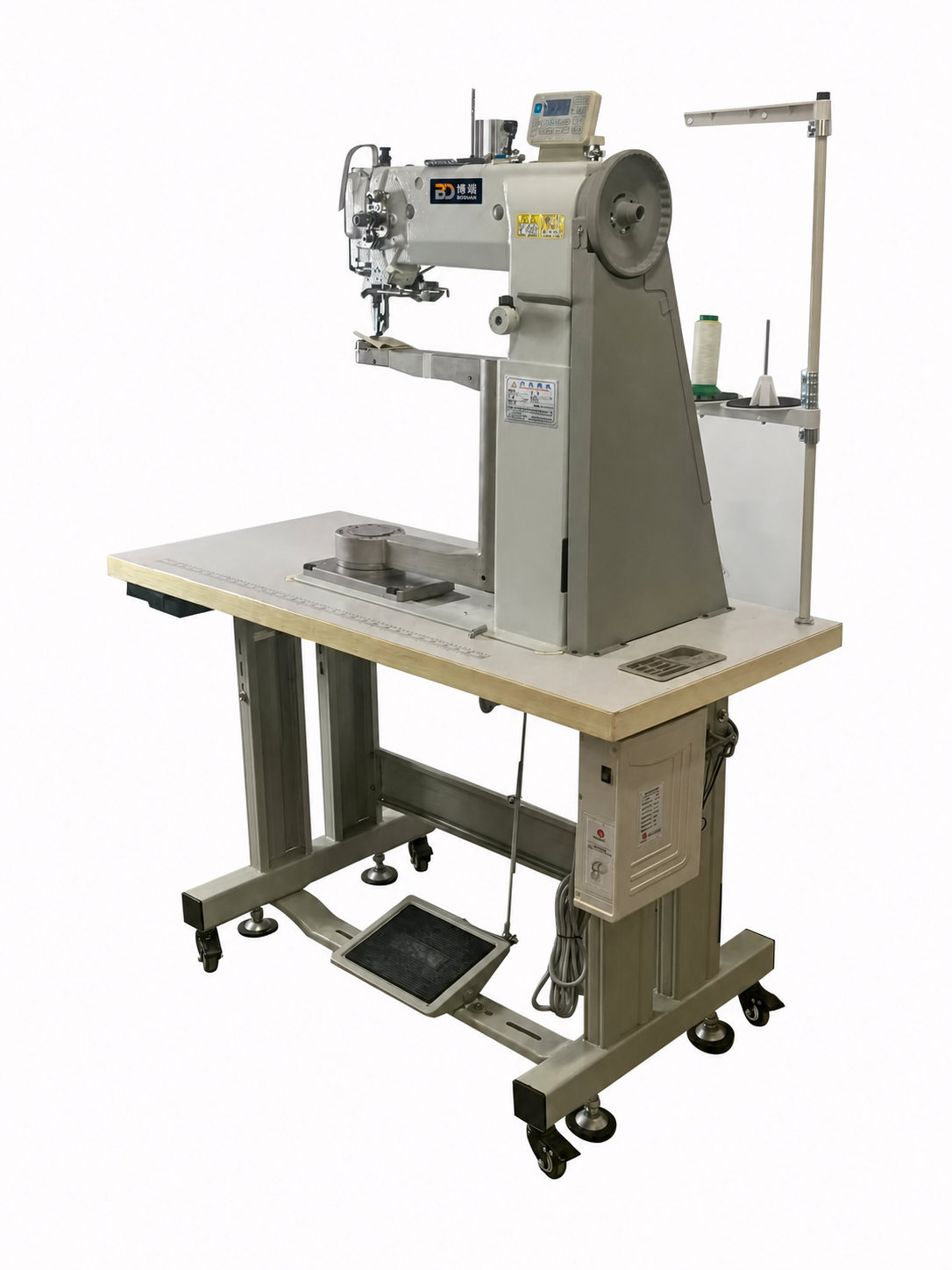

Column-Type Compound Feed Sewing Machine
Model: BD-6620-360
A column-type compound feed sewing machine with a 360-degree rotating sewing head for easier handling of three-dimensional workpieces, suitable for bags, travel goods, file bags and footwear components.
Export inquiries welcomeSpecifications confirmed before order
Product Features
Compound-Feed Mechanism
Supports curved, tubular and structured components while helping maintain consistent feeding and stitch formation.
Multi-Industry Applications
Suitable for bottom edges and three-dimensional sections of handbags, travel bags, document cases and footwear.
Vertical Hook and Semi-Automatic Lubrication
Combines a vertical rotary hook with semi-automatic lubrication for demanding workpieces and practical routine maintenance.
Product Video
Specifications
ItemBD-6620-360
ModelBD-6620-360
Maximum sewing speed1600 r.p.m
Stitch length0–8 mm
Needle bar stroke36 mm
Thread take-up stroke74.5 mm
Presser foot liftHand lift: 8 mm; knee lift: 16 mm
Needle systemDP×17，14#–21#
Number of needles1
Hook typeVertical rotary hook
LubricationSemi-automatic lubrication
Final specifications are subject to the technical details confirmed for the order.
